Figures are missing from questions

[mcdanlj]

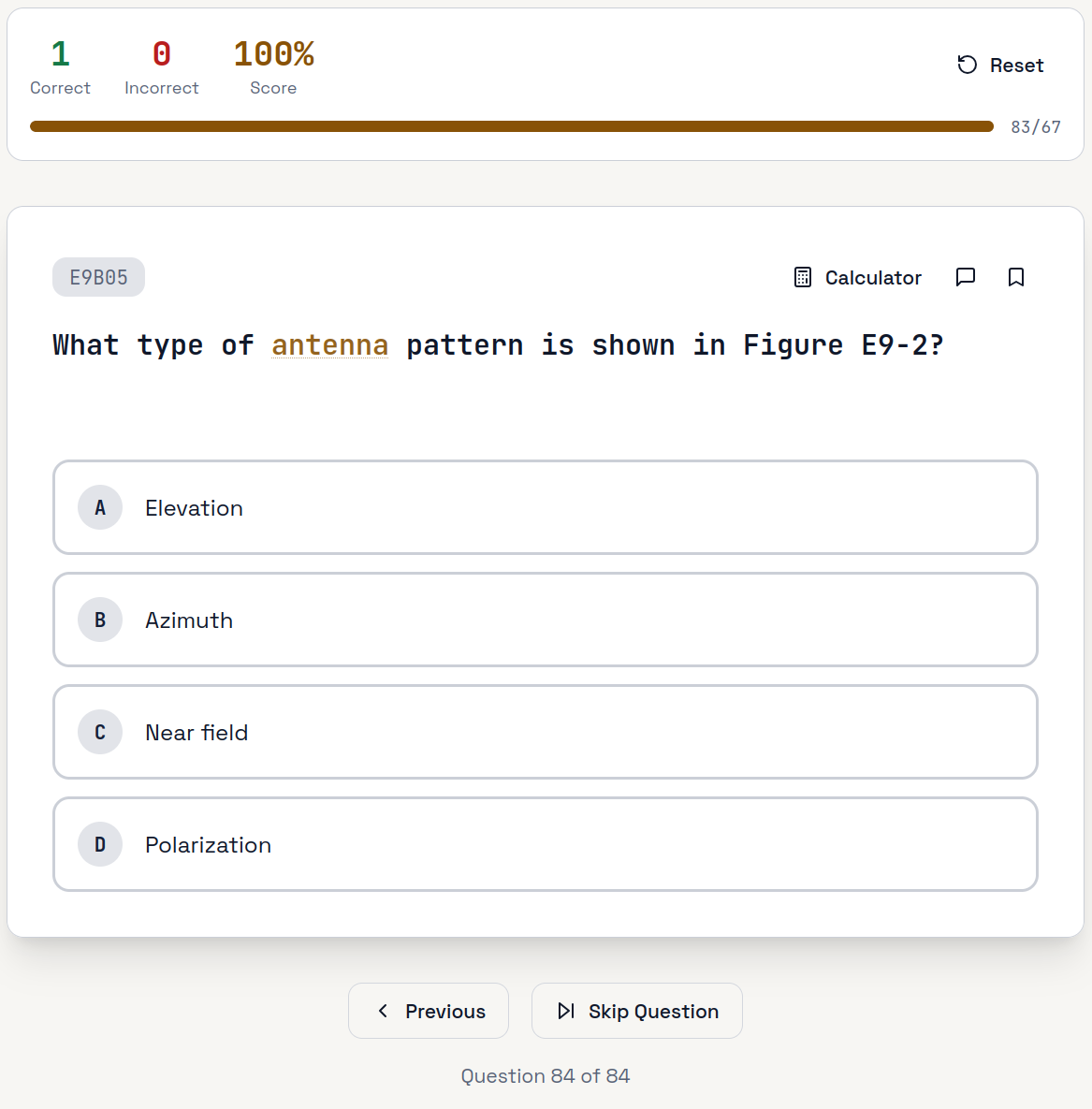

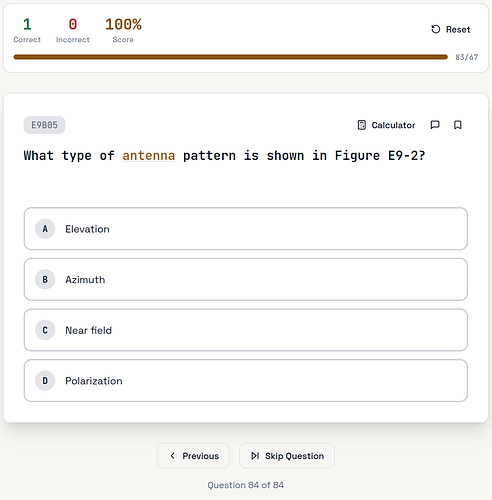

Some questions reference a figure.

• The app model for questions needs to have an optional reference to an image for the figure, and the app should host the image
• The figure should be displayed between the question text and the answers
• The figure should be included in the same place in the forum post for the question

120×120 2.11 KB

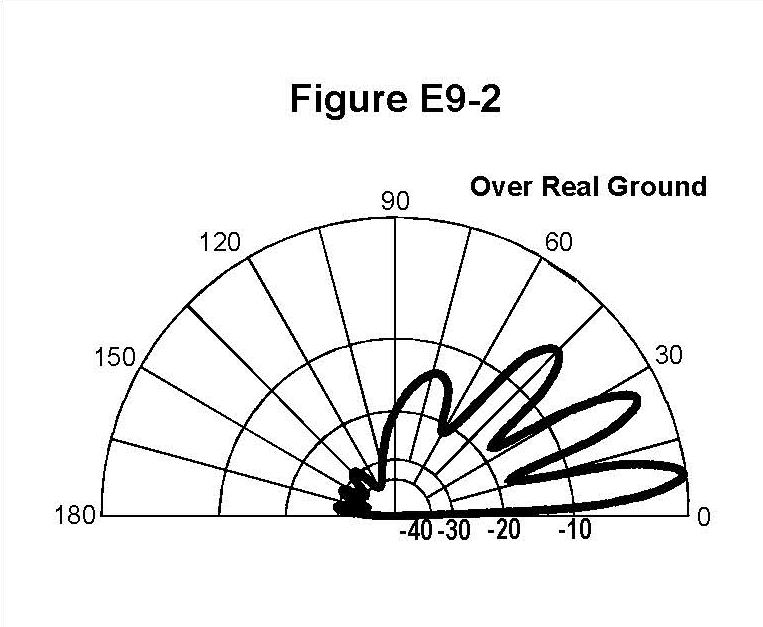

Question What type of antenna pattern is shown in Figure E9-2? [E9-2] Answer Options A) Elevation B) Azimuth C) Near field D) Polarization Correct Answer: A Explanation Antenna radiation patterns are generally plotted in two orthogonal (perpendicular) planes to fully characterize the antenna’s radiation over a sphere. The two standard cuts are the horizontal plane and the vertical plane. Figure E9-2 plots the antenna’s gain (in dBi) against the vertical angle from the horizon (or ground …

[sonyccd]

Good idea. I will get started on this.

[sonyccd]

feat: add figure image support to questions

[sonyccd]

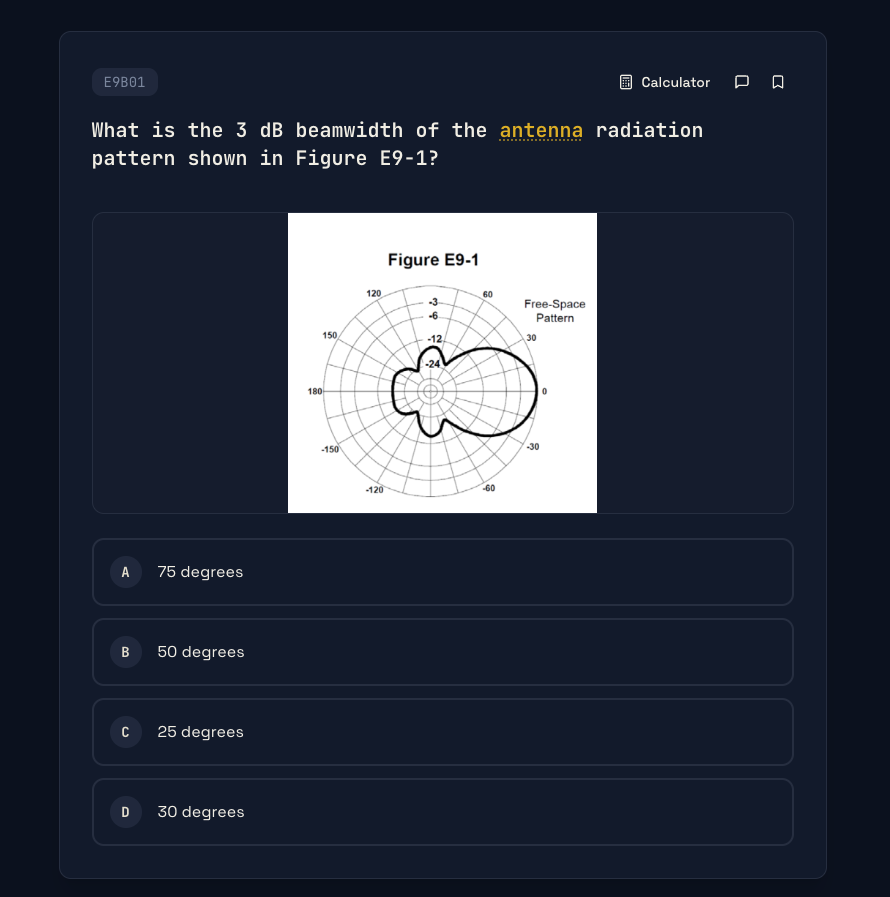

@mcdanlj you can now add images to any question in the admin interface

[sonyccd]

[mcdanlj]

And now with deep linking:

https://app.openhamprep.com/questions/E9B01

[sonyccd]

I do not follow? Are you saying I need to change something with deeplinkgin?

[mcdanlj]

No, I was just showing that now we can follow a link to see the question that you showed an image of, just glad to see it!

[mcdanlj]

This isn’t really done until I finish extracting all the figures from all the test questions and adding them to the forum and the app.

[mcdanlj]

I have finished extracting the official images from ncvec.org and applying them both on the forum and in the app.
