Question

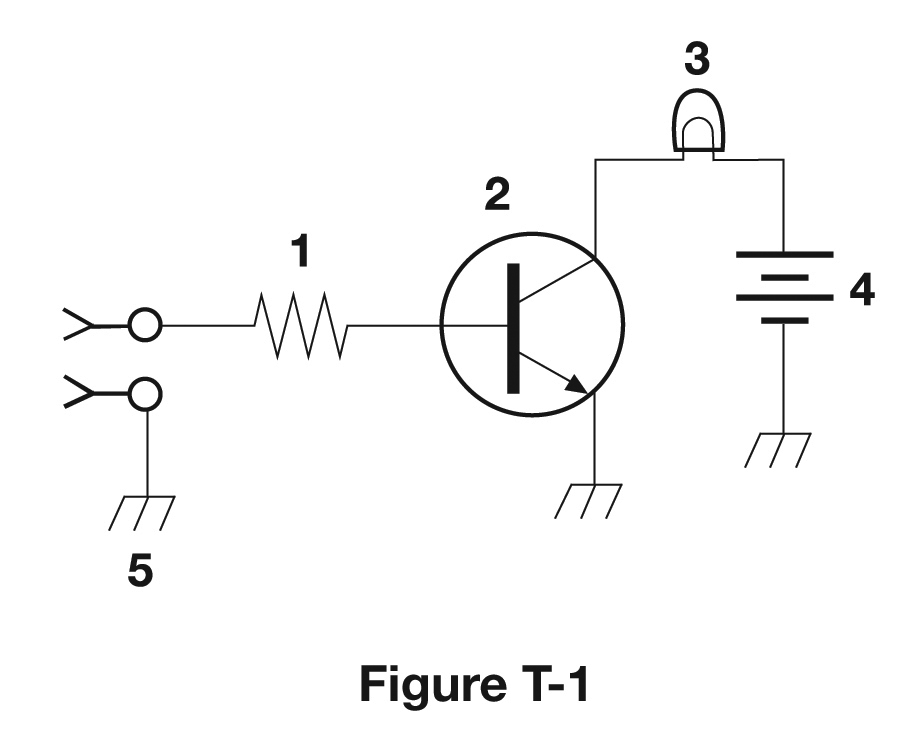

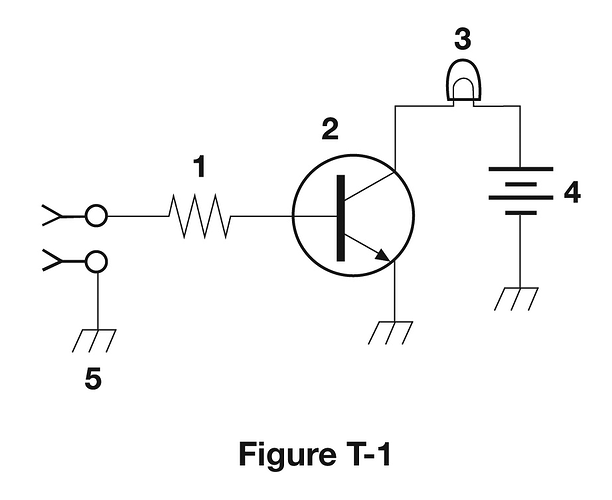

What is component 4 in figure T-1?
Answer Options
- A) Resistor
- B) Transistor
- C) Ground symbol
- D) Battery
Correct Answer: D
Explanation
Item 1 is a resistor, 2 is a transistor, 3 is a lamp, 4 is battery, and 5 is a ground reference.
